31106

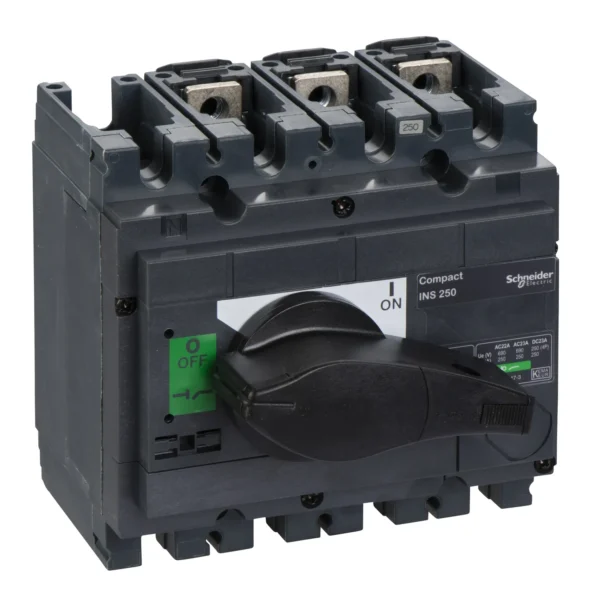

The Schneider Electric 31106 is a Compact INS250 switch-disconnector rated at 250A, delivering dependable 3-pole isolation for three-phase installations. It provides positive contact indication to IEC 60947-1 and 60947-3, ensuring safe, confirmed disconnection. Rated for operation up to 690V AC in utilization categories AC-22A and AC-23A, it switches on-load with ease. The black rotary handle offers clear ON/OFF status and ergonomic, reliable operation. It mounts on DIN rail or panel and accepts auxiliary contacts, handles, and earthing modules. Ideal for isolation duty in distribution boards, motor control centers, and industrial switchgear.
Order the Schneider 31106 INS250 from Aswan Electric now. WhatsApp us or enquire online for the best pricing across Dubai and the UAE.
Schneider Electric 31106 Molded Case Circuit Breaker | 3 Poles 250A Rated Current | MCCB Protection Device | Circuit Protection Overload Short Circuit | Industrial Commercial Applications | IEC Standards Compliant | Reliable Performance
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 31106 |
| Brand | Schneider Electric |
| Series | MCCB |
| Poles | 3 Poles |
| Rated Current In | 250A |
