A9D15832

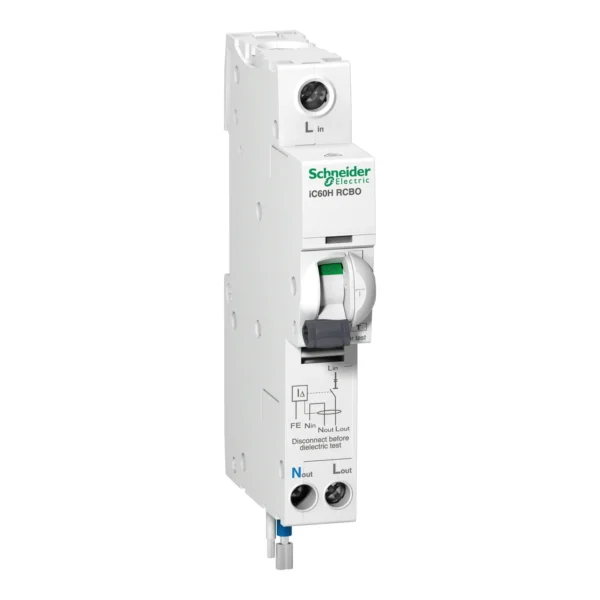

The Schneider Electric A9D15832 is an Acti9 iC60H RCBO rated at 32A with a 1P+N configuration, combining overload, short-circuit, and earth-leakage protection in one device. It has a C-curve trip characteristic and a 100mA earth-leakage sensitivity for protection against fire and indirect contact. With a 10kA breaking capacity at 240V AC, it delivers dependable performance in demanding installations. VisiSafe and VisiTrip indication give clear fault status and safe isolation, with IP20 finger-safe terminals. It clips onto DIN rail and is compliant with IEC/EN 61009-1. Ideal for final-circuit protection in homes, commercial buildings, and light industrial distribution boards.
Order the Schneider A9D15832 RCBO from Aswan Electric now. WhatsApp us or enquire online for the best pricing across the UAE.
Schneider Electric A9D15832 Acti9 RCBO | 32A Rated Current | Type C Curve | 230V AC | Acti9 Series Professional Grade MCB | Advanced Circuit Protection | Industrial Commercial Buildings | DIN Rail Mount Modular Design | BS EN 60898-1 IEC 60947-2 Standards | High Performance Reliability | Comb Busbar Compatible | Tool-Free Installation | Premium Build Quality | Energy Efficient System | Easy Upgrade Replace | Smart Grid Ready | Space Optimization | Professional Installation | Combined Protection Device | Earth Leakage Detection | Overcurrent Protection | Personal Safety | Space-Saving Design | Single Module Solution
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | A9D15832 |
| Brand | Schneider Electric |
| Series | Acti9 |
| Product Type | RCBO |
| Rated Current In | 32A |
| Tripping Curve | Type C Curve |
| Rated Voltage | 230V AC |
| Standards | BS EN 60898-1, IEC 60947-2, Marine certifications |
| Mounting | DIN rail 35mm |
| Pitch | 9mm (1 module per pole) |
| Protection | IP20, IP40 optional |
| Terminal | Dual connection top/bottom |
| Operating Temp | -25°C to +70°C |
| Mechanical Life | 20,000+ operations |
| Comb busbar compatible | |
| Trip indication window |
