A9F44101

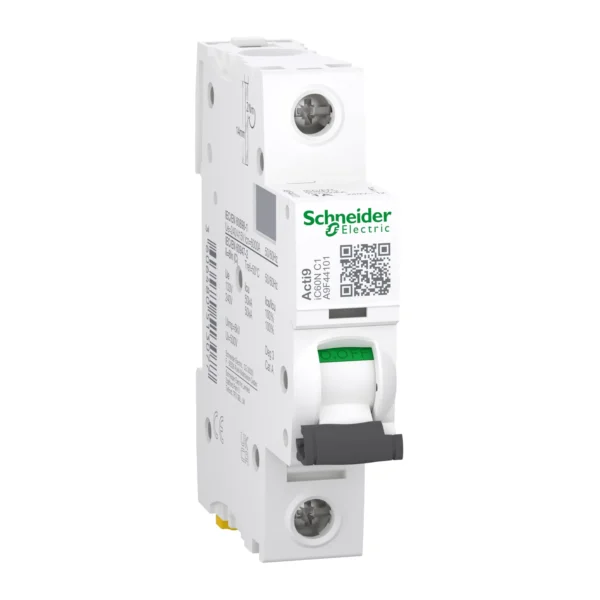

The Schneider Electric A9F44101 is an Acti9 iC60N miniature circuit breaker rated at 1A in a single-pole design, with a C-curve trip characteristic for overload and short-circuit protection. It delivers a breaking capacity of 6000A (IEC/EN 60898-1) and 10kA (IEC/EN 60947-2) for reliable fault protection. VisiSafe and VisiTrip technology give clear status indication and safe isolation, with IP20 finger-safe terminals. Its compact 18mm module clips onto DIN rail for quick installation. Compliant with IEC/EN 60898-1 and 60947-2, it is RoHS and REACH compliant. Ideal for final-circuit protection in residential, commercial, and industrial distribution boards.
Order the Schneider A9F44101 MCB from Aswan Electric now. WhatsApp us or enquire online for the best pricing across Dubai and the UAE.
Schneider Electric A9F44101 Acti9 OTHER | 1 Pole 1A Rated Current | Type C Curve | 6kA / 6000A Breaking Capacity | Acti9 Series Professional Grade MCB | Advanced Circuit Protection | Industrial Commercial Buildings | DIN Rail Mount Modular Design | BS EN 60898-1 IEC 60947-2 Standards | High Performance Reliability | Comb Busbar Compatible | Tool-Free Installation | Premium Build Quality | Energy Efficient System | Easy Upgrade Replace | Smart Grid Ready | Space Optimization | Professional Installation
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | A9F44101 |
| Brand | Schneider Electric |
| Series | Acti9 |
| Product Type | OTHER |
| Poles | 1 Pole (1P) |
| Rated Current In | 1A |
| Tripping Curve | Type C Curve |
| Breaking Capacity Icn/Icu | 6kA / 6000A |
| Standards | BS EN 60898-1, IEC 60947-2, Marine certifications |
| Mounting | DIN rail 35mm |
| Pitch | 9mm (1 module per pole) |
| Protection | IP20, IP40 optional |
| Terminal | Dual connection top/bottom |
| Operating Temp | -25°C to +70°C |
| Mechanical Life | 20,000+ operations |
| Comb busbar compatible | |
| Trip indication window |
