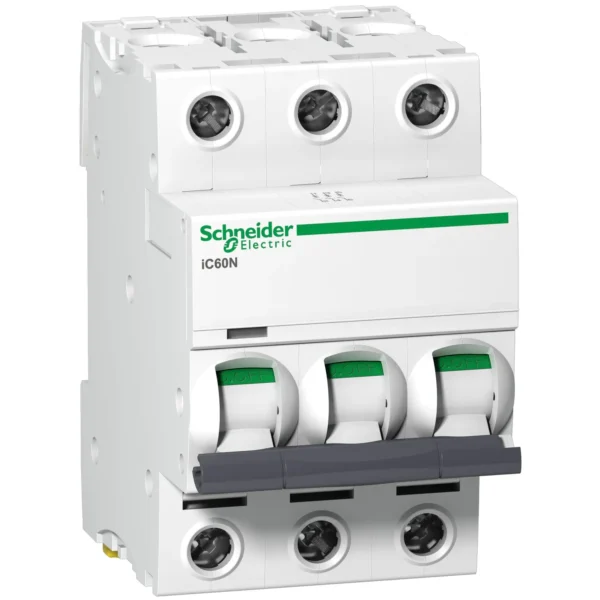

A9F44310
The Schneider Electric A9F44310 is an Acti9 iC60N miniature circuit breaker rated at 10A in a 3-pole design, with a C-curve trip characteristic for overload and short-circuit protection of three-phase circuits. It delivers a breaking capacity of 6000A (IEC/EN 60898-1) and 10kA (IEC/EN 60947-2) for reliable fault protection. VisiSafe and VisiTrip technology give clear status indication and safe isolation, with IP20 finger-safe terminals. Its three-module body clips onto DIN rail for quick installation. Compliant with IEC/EN 60898-1 and 60947-2, it is RoHS and REACH compliant. Ideal for three-phase final-circuit protection in commercial and industrial distribution boards.
Buy the Schneider A9F44310 MCB from Aswan Electric today. Message us on WhatsApp or send an enquiry for competitive UAE pricing.
Schneider Electric A9F44310 Acti9 OTHER | 3 Poles 10A Rated Current | Type C Curve | Acti9 Series Professional Grade MCB | Advanced Circuit Protection | Industrial Commercial Buildings | DIN Rail Mount Modular Design | BS EN 60898-1 IEC 60947-2 Standards | High Performance Reliability | Comb Busbar Compatible | Tool-Free Installation | Premium Build Quality | Energy Efficient System | Easy Upgrade Replace | Smart Grid Ready | Space Optimization | Professional Installation
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | A9F44310 |
| Brand | Schneider Electric |
| Series | Acti9 |
| Product Type | OTHER |
| Poles | 3 Poles (3P) |
| Rated Current In | 10A |
| Tripping Curve | Type C Curve |
| Standards | BS EN 60898-1, IEC 60947-2, Marine certifications |
| Mounting | DIN rail 35mm |
| Pitch | 9mm (1 module per pole) |
| Protection | IP20, IP40 optional |
| Terminal | Dual connection top/bottom |
| Operating Temp | -25°C to +70°C |
| Mechanical Life | 20,000+ operations |
| Comb busbar compatible | |
| Trip indication window |
