A9F54202

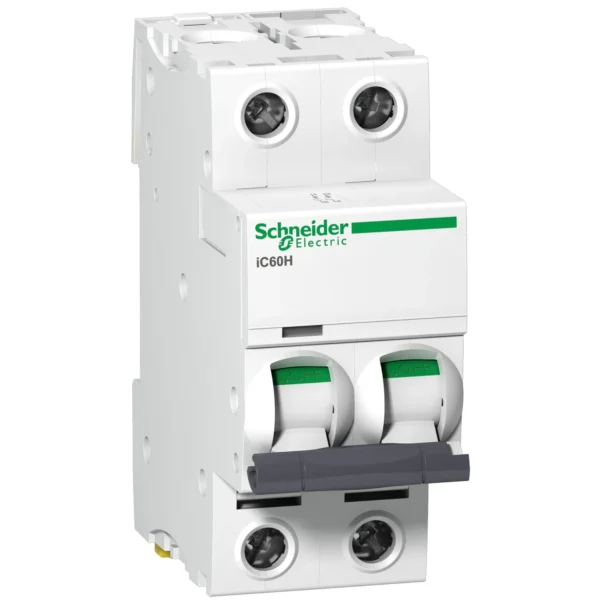

The Schneider Electric A9F54202 is an Acti9 iC60H miniature circuit breaker rated at 2A in a 2-pole design, with a C-curve trip characteristic for overload and short-circuit protection. It delivers a higher breaking capacity of 10000A (IEC/EN 60898-1) and 15kA (IEC/EN 60947-2) for more demanding installations. VisiSafe and VisiTrip technology give clear status indication and safe isolation, with a red mechanical fault-trip indicator. Its two-module body clips onto DIN rail and is suitable for industrial isolation per IEC/EN 60947-2. Compliant with IEC/EN 60898-1 and 60947-2, it is RoHS and REACH compliant. Ideal for two-pole final-circuit protection in industrial and commercial distribution boards.
Buy the Schneider A9F54202 MCB from Aswan Electric today. Message us on WhatsApp or send an enquiry for competitive UAE pricing.
Schneider Electric A9F54202 Acti9 OTHER | 2 Poles 2A Rated Current | Type C Curve | 10kA / 10000A Breaking Capacity | Acti9 Series Professional Grade MCB | Advanced Circuit Protection | Industrial Commercial Buildings | DIN Rail Mount Modular Design | BS EN 60898-1 IEC 60947-2 Standards | High Performance Reliability | Comb Busbar Compatible | Tool-Free Installation | Premium Build Quality | Energy Efficient System | Easy Upgrade Replace | Smart Grid Ready | Space Optimization | Professional Installation
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | A9F54202 |
| Brand | Schneider Electric |
| Series | Acti9 |
| Product Type | OTHER |
| Poles | 2 Poles (2P) |
| Rated Current In | 2A |
| Tripping Curve | Type C Curve |
| Breaking Capacity Icn/Icu | 10kA / 10000A |
| Standards | BS EN 60898-1, IEC 60947-2, Marine certifications |
| Mounting | DIN rail 35mm |
| Pitch | 9mm (1 module per pole) |
| Protection | IP20, IP40 optional |
| Terminal | Dual connection top/bottom |
| Operating Temp | -25°C to +70°C |
| Mechanical Life | 20,000+ operations |
| Comb busbar compatible | |
| Trip indication window |
