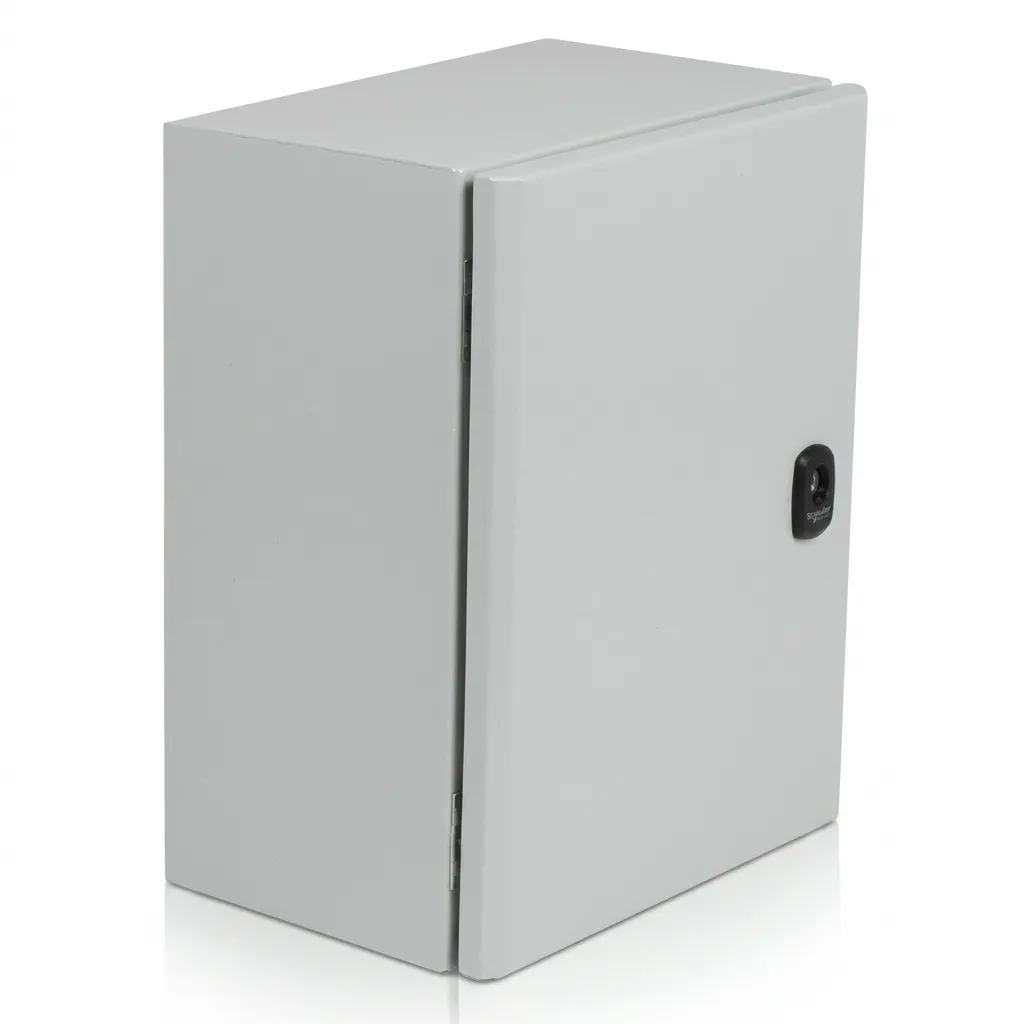

The alfanar SB Range is a premium IP66-rated single door metal enclosure designed for industrial and commercial electrical installations across the UAE and GCC region. Engineered from high-quality electro-galvanized steel with a scratch-resistant polyester powder coat finish (RAL 7032 light grey), these enclosures protect switchgear, controlgear, and control systems in the most demanding environments.
With 63 standard sizes ranging from compact 200x200mm wall-mount boxes to large 800x800mm floor-standing cabinets, the SB range covers virtually every project requirement — from residential and commercial buildings in Dubai and Sharjah to heavy industrial plants, oil & gas facilities, and utilities across the UAE and Saudi Arabia.
The smooth corner-formed door delivers both superior weatherproofing and a professional, aesthetically clean appearance suitable for exposed installations. Each enclosure ships with a hardware kit, instruction manual, and adjustable 2mm galvanized steel mounting plate.
Applications: Switchgear assemblies, motor control centers (MCC), power distribution boards (PDB), HVAC control panels, building management systems, data centers, hospitals, hotels, manufacturing facilities, pumping stations, and critical infrastructure projects throughout the UAE, Saudi Arabia, and wider GCC.
Specifications
| Specification | Details |
|---|---|
| Material | High-quality electro-galvanized (EG) steel |
| Enclosure Thickness | 1.2mm (200–700mm height) / 1.5mm (700–800mm height) |
| Mounting Plate Thickness | 2.0mm (hot-dipped galvanized / Alu-Zinc) |
| Finish | Matt polyester powder coat, RAL 7032 light grey (custom colors on request) |
| IP Rating | IP66 |
| Standards | IEC 60529 / IEC 62208 / CE compliant |
| Lock | 1 or 2-point cam lock with metal key |
| Gasket | Formed-in-place polyurethane (FIPG) for weatherproof seal |
| Mounting | Wall mount & floor mount |
| Gland Plates | 1 or 2 removable bottom gland plates (size-dependent) |
| Hinges | Easily reversible (for certain sizes) |
| Earthing | Earthing studs on enclosure and door |
| Height Range | 200mm – 800mm |
| Width Range | 200mm – 800mm |
| Depth Range | 150mm – 400mm |
| Number of SKUs | 63 |
