C40F32D400

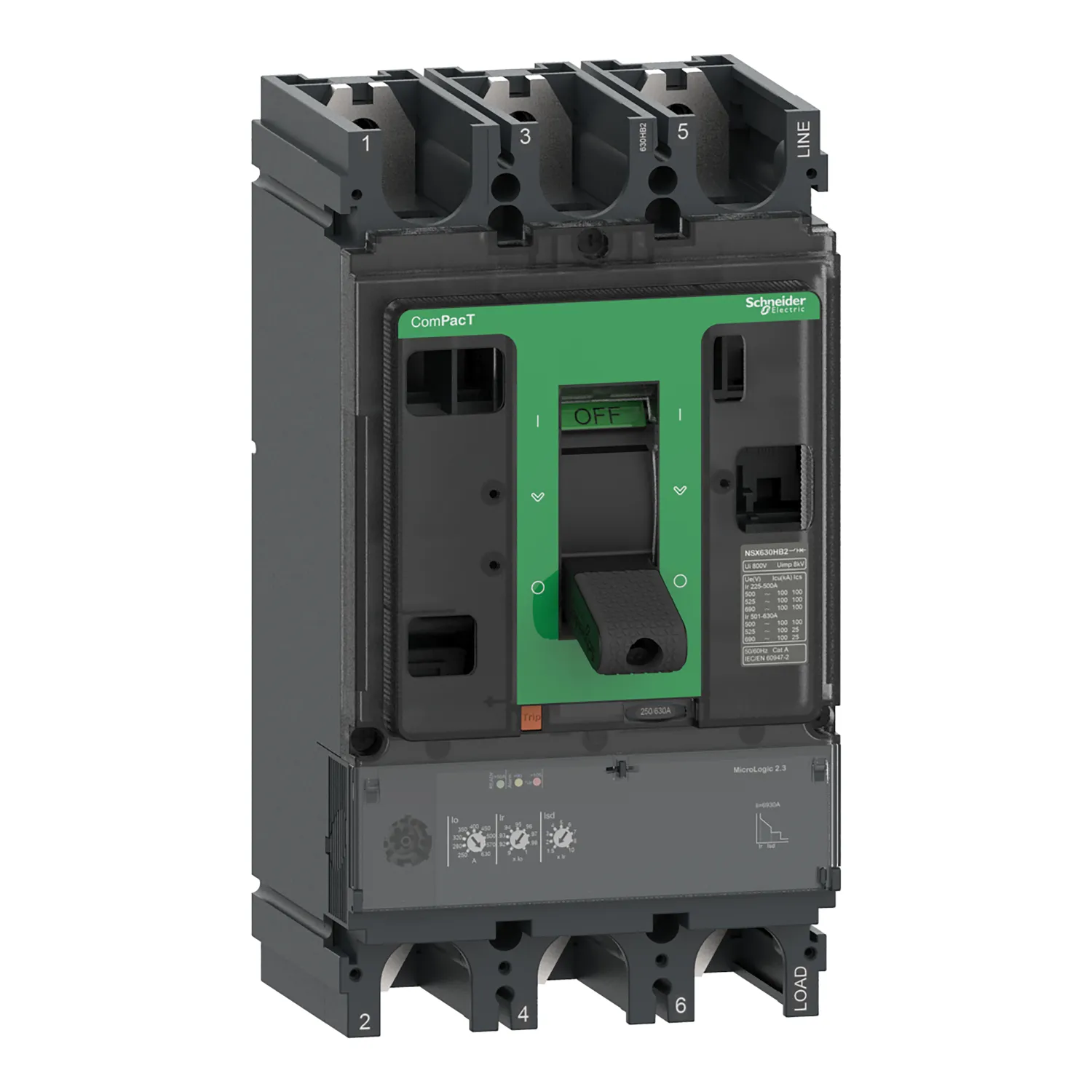

The Schneider Electric C40F32D400 is a ComPacT NSX400F molded case circuit breaker rated at 400A with a MicroLogic 2.3 electronic trip unit for precise overload and short-circuit protection. This 3-pole breaker delivers a breaking capacity (Icu) of 36kA at 415V AC for demanding power distribution. The MicroLogic 2.3 unit provides adjustable long-time and short-time protection plus fixed instantaneous protection, with LED load indication. Its NSX400 frame is built for higher currents while optimizing panel space. Compliant with IEC 60947 and marine specifications, it is part of the EcoStruxure Power architecture. Ideal for main and sub-main distribution, transformer protection, and industrial switchboards.
Buy the Schneider C40F32D400 NSX400F from Aswan Electric today. Message us on WhatsApp or send an enquiry for competitive pricing across Dubai and the UAE.
Schneider Electric C40F32D400 Molded Case Circuit Breaker | 3 Poles 400A Rated Current | 36kA Breaking Capacity | MCCB Protection Device | Circuit Protection Overload Short Circuit | Industrial Commercial Applications | IEC Standards Compliant | Reliable Performance
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | C40F32D400 |
| Brand | Schneider Electric |
| Series | MCCB |
| Poles | 3 Poles |
| Rated Current In | 400A |
| Breaking Capacity Icu | 36kA at 415V AC |
