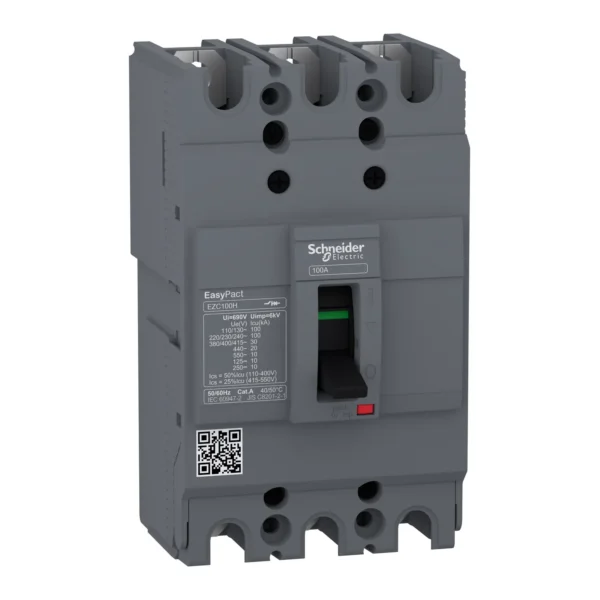

EZC100H3025
The Schneider Electric EZC100H3025 is an EasyPact EZC100H molded case circuit breaker rated at 25A in a 3-pole design, with a TMD thermal-magnetic trip unit for overload and short-circuit protection. It offers a breaking capacity (Icu) of 30kA at 415V AC, delivering solid performance for three-phase circuits at a competitive price. The TMD trip unit provides fixed overload and instantaneous protection, with operation up to 550V AC or 250V DC. Its compact 75x130x60mm frame suits tight panels, with positive contact indication. Compliant with IEC 60947 and UL 508 plus marine certifications, it fits a wide range of applications. Ideal for three-phase circuit protection in industrial plants, commercial buildings, and OEM equipment.
Order the Schneider EZC100H3025 from Aswan Electric now. WhatsApp us or enquire online for the best pricing across Dubai and the UAE.
Schneider Electric EZC100H3025 Molded Case Circuit Breaker | 3 Poles 25A Rated Current | 30kA Breaking Capacity | EasyPact Series MCCB | Thermal Magnetic Trip Unit TMD | Fixed Settings Protection | DIN Rail Panel Mount | IP40 IP54 Protection | IEC 60947-1 IEC 60947-2 Standards | Industrial Commercial Buildings | Power Distribution Motor Control | Overload Short Circuit Protection | Cost-Effective Reliable Performance | Compact Design Space-Saving | Complete Range Auxiliaries Available
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | EZC100H3025 |
| Brand | Schneider Electric |
| Series | EasyPact EZC100H |
| Poles | 3 Poles |
| Rated Current In | 25A |
| Breaking Capacity Icu | 30kA at 415V AC |
| Trip Unit | TMD (Thermal-Magnetic with fixed settings) |
| Standards | IEC 60947-1, IEC 60947-2 |
| Voltage | Up to 690V AC |
| Protection | IP40 standard, IP54 optional |
| Mounting | DIN rail, Panel |
| Features | Compact design, Cost-effective, Reliable protection, Complete accessories range |
| Applications | Small to medium buildings, Standard industrial |
