EZC100N3100

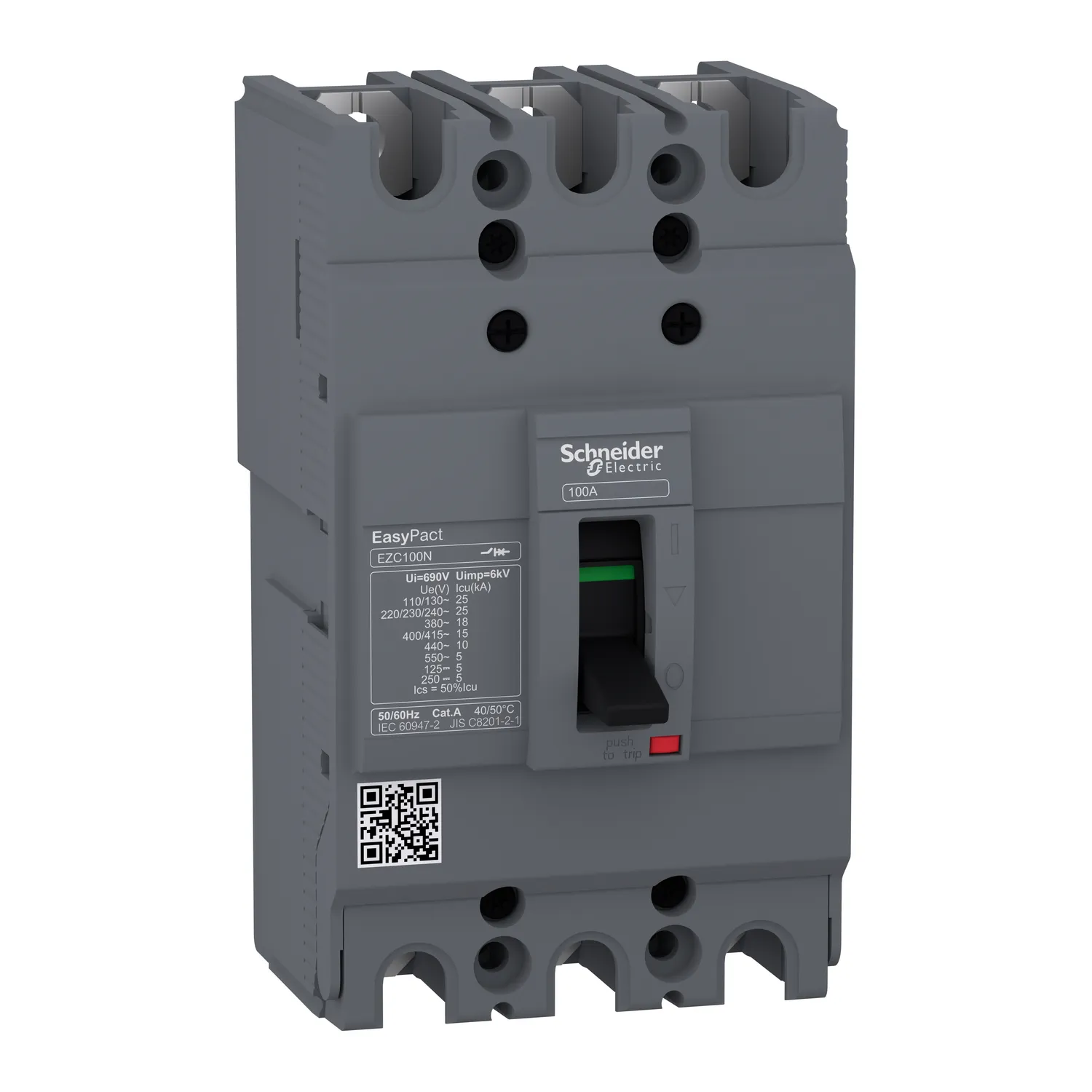

The Schneider Electric EZC100N3100 is an EasyPact EZC100N molded case circuit breaker rated at 100A in a 3-pole design, the top rating of the EZC100 frame, with a TMD thermal-magnetic trip unit for overload and short-circuit protection. It offers a breaking capacity (Icu) of 25kA at 415V AC with dependable, economical performance for three-phase circuits. The TMD trip unit provides fixed overload and instantaneous protection, with operation up to 550V AC or 250V DC. Its compact 75x130x60mm frame suits tight panels, with positive contact indication. Compliant with IEC 60947 and UL 508 plus marine certifications, it fits demanding applications. Ideal for three-phase main and feeder protection in industrial plants, commercial buildings, and OEM equipment.
Buy the Schneider EZC100N3100 from Aswan Electric today. Message us on WhatsApp or send an enquiry for competitive UAE pricing.
Schneider Electric EZC100N3100 Molded Case Circuit Breaker | 3 Poles 100A Rated Current | 15kA Breaking Capacity | EasyPact Series MCCB | Thermal Magnetic Trip Unit TMD | Fixed Settings Protection | DIN Rail Panel Mount | IP40 IP54 Protection | IEC 60947-1 IEC 60947-2 Standards | Industrial Commercial Buildings | Power Distribution Motor Control | Overload Short Circuit Protection | Cost-Effective Reliable Performance | Compact Design Space-Saving | Complete Range Auxiliaries Available
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | EZC100N3100 |
| Brand | Schneider Electric |
| Series | EasyPact EZC100N |
| Poles | 3 Poles |
| Rated Current In | 100A |
| Breaking Capacity Icu | 15kA at 415V AC |
| Trip Unit | TMD (Thermal-Magnetic with fixed settings) |
| Standards | IEC 60947-1, IEC 60947-2 |
| Voltage | Up to 690V AC |
| Protection | IP40 standard, IP54 optional |
| Mounting | DIN rail, Panel |
| Features | Compact design, Cost-effective, Reliable protection, Complete accessories range |
| Applications | Small to medium buildings, Standard industrial |
