EZC630N3600N

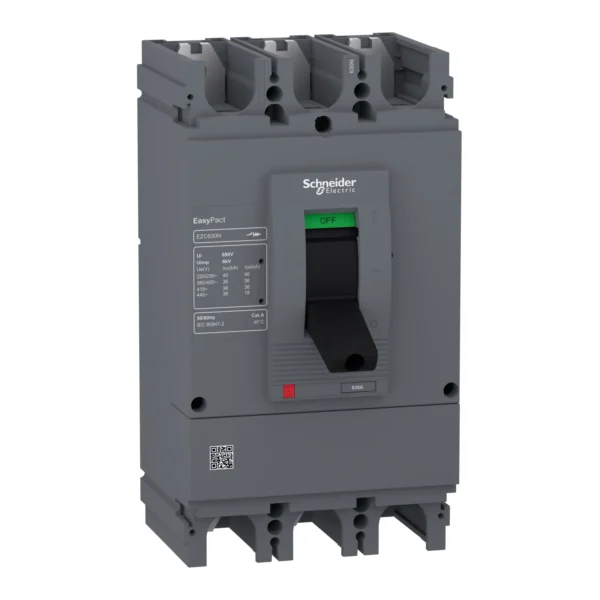

The Schneider Electric EZC630N3600N is an EasyPact EZC630N molded case circuit breaker rated at 600A in a 3-pole design, the top rating of the EZC630 frame, with a TMD thermal-magnetic trip unit for overload and short-circuit protection. It delivers a breaking capacity (Icu) of 36kA at 415V AC with dependable performance for the heaviest power distribution. The TMD trip unit provides fixed overload and instantaneous protection, with operation up to 690V AC or 250V DC. Its large EZC630 frame handles very high currents with front-connection terminals and positive contact indication. Compliant with IEC 60947 and UL 508 plus marine certifications, it suits heavy industrial duty. Ideal for three-phase main incomer and sub-main distribution in industrial plants, switchboards, and substations.
Order the Schneider EZC630N3600N from Aswan Electric now. WhatsApp us or enquire online for the best pricing across the UAE.
Schneider Electric EZC630N3600N Molded Case Circuit Breaker | 3 Poles EasyPact Series MCCB | Thermal Magnetic Trip Unit TMD | Fixed Settings Protection | DIN Rail Panel Mount | IP40 IP54 Protection | IEC 60947-1 IEC 60947-2 Standards | Industrial Commercial Buildings | Power Distribution Motor Control | Overload Short Circuit Protection | Cost-Effective Reliable Performance | Compact Design Space-Saving | Complete Range Auxiliaries Available
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | EZC630N3600N |
| Brand | Schneider Electric |
| Series | MCCB |
| Poles | 3 Poles |
| Trip Unit | TMD (Thermal-Magnetic with fixed settings) |
| Standards | IEC 60947-1, IEC 60947-2 |
| Voltage | Up to 690V AC |
| Protection | IP40 standard, IP54 optional |
| Mounting | DIN rail, Panel |
| Features | Compact design, Cost-effective, Reliable protection, Complete accessories range |
| Applications | Small to medium buildings, Standard industrial |
