GV2ME14

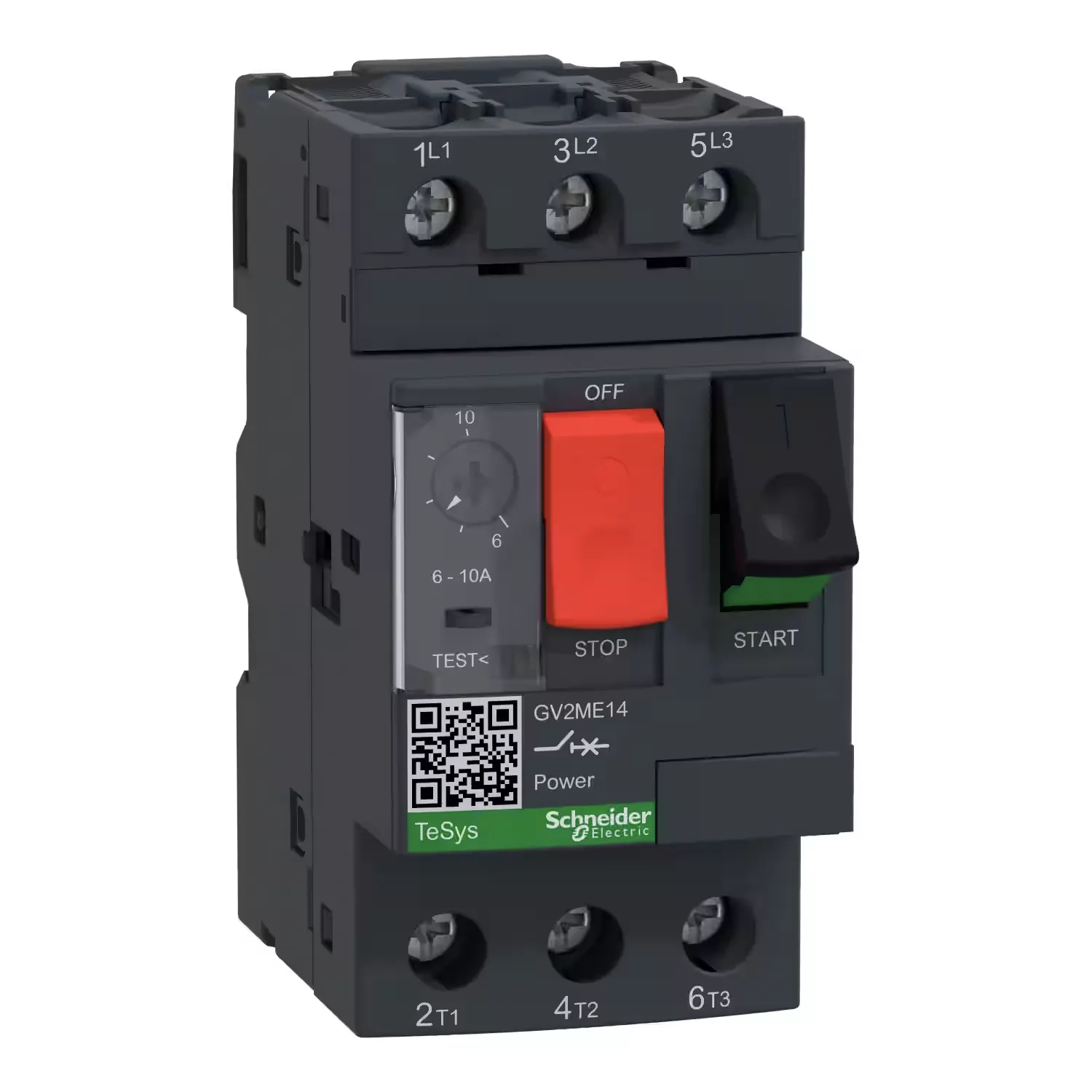

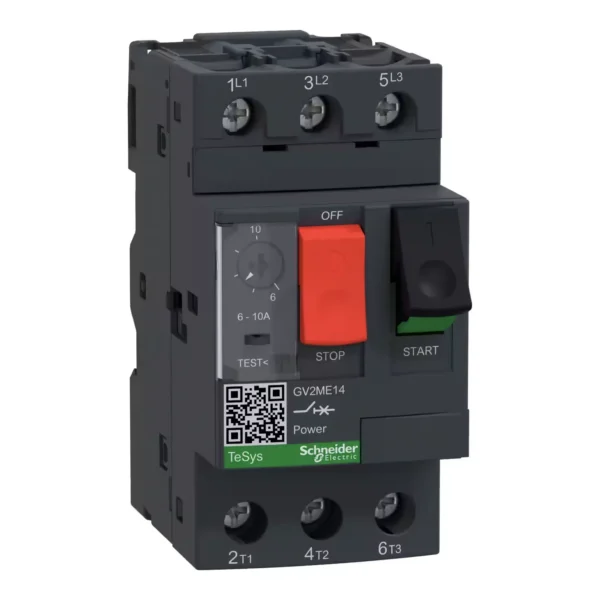

The Schneider GV2ME14 is a TeSys GV2 manual motor starter and circuit breaker with an adjustable range of 6 to 10A, protecting motors from 4 to 5.5kW. It delivers thermal magnetic overload and short circuit protection with a rotary handle and adjustable trip dial. Rated to a high 100kA breaking capacity at 400V and usable up to 690V, it mounts on DIN rail or panel with finger safe IP20 terminals. UL508, CSA, and RoHS compliant. Ideal for pumps, fans, conveyors, and processing machinery.
Speak to Aswan Electric for the best deal on this TeSys motor breaker, in stock in Dubai, UAE.
Schneider Electric GV2ME14 Motor Circuit Breaker 6-10A | TeSys GV2ME Manual Motor Starter | Thermal-Magnetic Protection Technology | Rotary Operating Handle Control | Adjustable Trip Current Dial | Short Circuit Breaking 100kA | IP20 Protection Finger-Safe | DIN Rail Panel Mount | UL508 CSA Certified | RoHS Compliant Green Premium
Technical Specifications
| Specification | Details |
|---|---|
| Range | 6-10A |
| Type | Motor circuit breaker |
| Protection | Thermal-magnetic |
| Handle | Rotary control |
| Adjustable | Trip dial |
| Breaking | 100kA @400V |
| Protection | IP20 |
| Mount | DIN/Panel |
| Standards | UL508/CSA/IEC |
| Green | RoHS/REACH |
| Voltage | 690V |
