GV2ME21

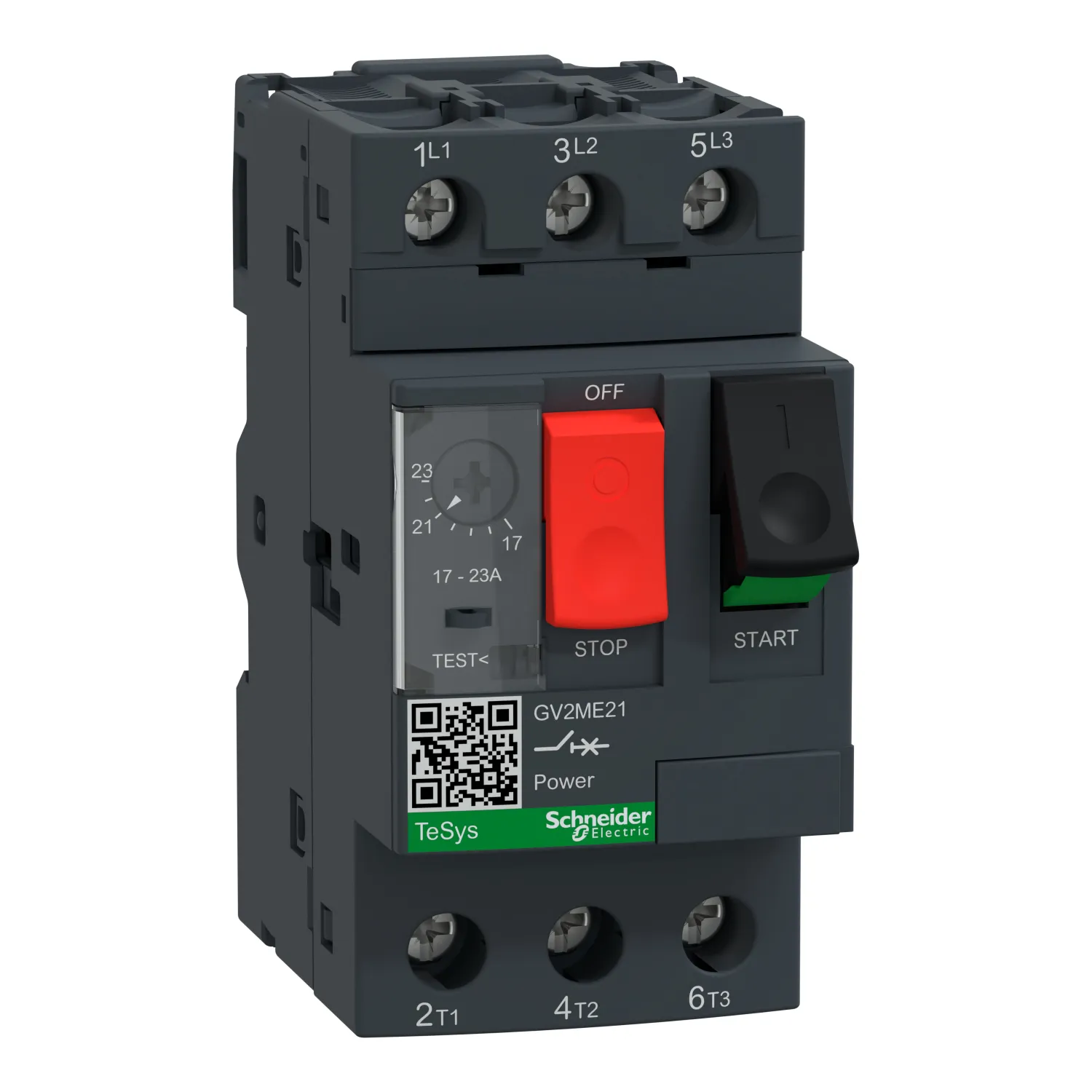

The Schneider GV2ME21 is a TeSys GV2 manual motor starter and circuit breaker with an adjustable range of 17 to 23A, protecting motors from 11 to 15kW. It combines thermal magnetic overload and short circuit protection with a rotary operating handle and adjustable trip dial. Rated for a high 100kA breaking capacity at 400V and usable up to 690V, it mounts on DIN rail or panel with finger safe IP20 terminals. Certified to UL508, CSA, and IEC. Ideal for heavy duty pumps, fans, conveyors, and industrial machinery.
Contact Aswan Electric today for pricing and availability in Dubai, UAE.
Schneider Electric GV2ME21 Motor Circuit Breaker 17-23A | TeSys GV2ME Manual Motor Starter | Thermal-Magnetic Protection Technology | Rotary Operating Handle Control | Adjustable Trip Current Dial | Short Circuit Breaking 100kA | IP20 Protection Finger-Safe | DIN Rail Panel Mount | UL508 CSA Certified | RoHS Compliant Green Premium
Technical Specifications
| Specification | Details |
|---|---|
| Range | 17-23A |
| Type | Motor circuit breaker |
| Protection | Thermal-magnetic |
| Handle | Rotary control |
| Adjustable | Trip dial |
| Breaking | 100kA @400V |
| Protection | IP20 |
| Mount | DIN/Panel |
| Standards | UL508/CSA/IEC |
| Green | RoHS/REACH |
| Voltage | 690V |
