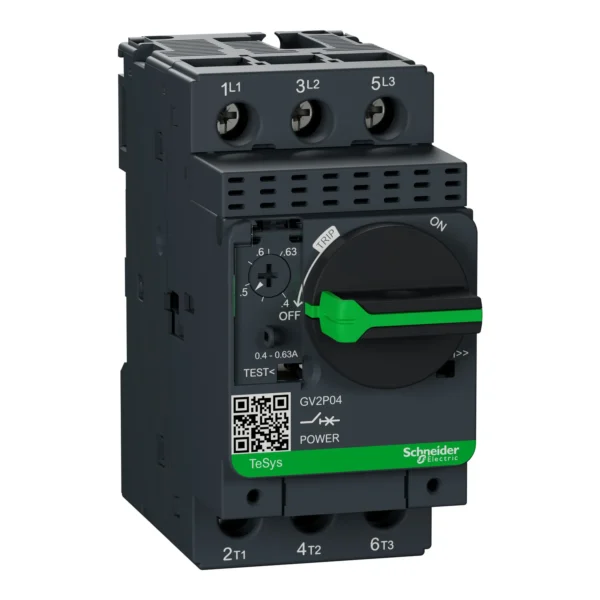

GV2P04
The Schneider GV2P04 is a TeSys GV2P motor protection switch and manual starter with an adjustable range of 0.4 to 0.63A, protecting motors from 0.37 to 0.55kW. It combines thermal magnetic protection with a rotary handle, visible trip indicator, and adjustable current dial. Rated for a high 100kA SCCR and usable up to 690V, it mounts on DIN rail or panel with finger safe IP20 terminals. UL508, CSA, and IEC certified. Ideal for small pumps, fans, conveyors, and HVAC equipment.
Contact the Aswan Electric team today for pricing and same region delivery in Dubai, UAE.
Schneider Electric GV2P04 Motor Protection Switch 0.4-0.63A | TeSys GV2P High Performance Starter | Thermal-Magnetic Trip Technology | Rotary Handle Visible Trip Indicator | Adjustable Current Setting Dial | High Breaking Capacity 100kA SCCR | IP20 Finger-Safe Terminals | DIN Rail Panel Mount Options | UL508 CSA IEC Certified | Green Premium RoHS
Technical Specifications
| Specification | Details |
|---|---|
| Range | 0.4-0.63A |
| Type | Motor protection switch |
| Trip | Thermal-magnetic |
| Handle | Rotary visible trip |
| Adjustable | Current dial |
| Breaking | 100kA SCCR |
| Protection | IP20 finger-safe |
| Mount | DIN/Panel options |
| Standards | UL508/CSA/IEC |
| Green | RoHS premium |
| Voltage | 690V |
