HE004-02
Industrial Automation Equipment, CNC Machinery Control, Factory Production Lines, Large Mechanical Equipment, Material Handling Systems, Packaging Machinery, Textile Manufacturing, Food Processing Equipment, Pharmaceutical Machinery, Chemical Processing Plants, Power Distribution Panels, Motor Control Centers, Robotics Systems, Conveyor Controls, Manufacturing Automation, Process Control Systems, Machine Tools, Heavy Machinery, Industrial Control Cabinets

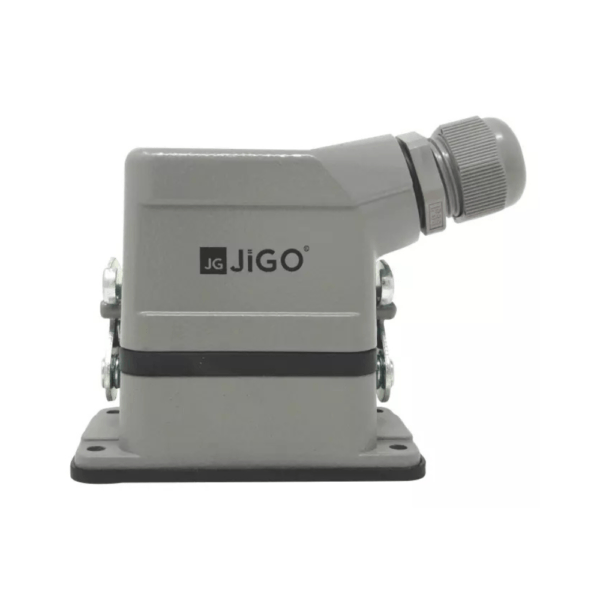

JIGO HE004-02 Heavy Duty Connector 4 PIN – 100 Insertions | Industrial Rectangular Metal Plug & Socket Bottom Open Design | Side Entry Cable Connection | IP65 Waterproof Protection | 16A 500V Rated | Silver-Plated Copper Pins | Die-Cast Aluminum Alloy Shell Grey | Screw Terminal Connection 0.5-4mm² | Temperature Range -40°C to +125°C | UL94 V0 Flame Retardant | CE/RoHS Certified
Technical Specifications
| Specification | Details |
|---|---|
| Model | HE004-02 |
| Pin Configuration | 4 PIN – 100 insertions |
| Type | Rectangle Metal Plug & Socket |
| Design | Bottom Open Side Entry |
| Current Rating | 16A |
| Voltage Rating | 500V |
| Pin Material | Copper silver-plated |
| Contact Resistance | ≤1mΩ |
| Shell Material | Die-cast aluminum alloy |
| Shell Color | Grey |
| Surface Treatment | High-temperature powder coating |
| Wiring Form | Screw connection |
| Wire Specification | 0.5-4mm² |
| Screw Torque | 0.5NM |
| Wire Stripping Length | 7-9mm |
| Protection Grade | IP65 |
| Working Temperature | -40°C to +125°C |
| Flame Retardant | UL94 V0 |
| Seal Material | Nitrile rubber |
| Locking | Metal roller double buckle |
| Insertion Cycles | ≥500 |
| Standards | CE/RoHS compliant |
