HE024-04
Control Panel Mounting, Electrical Cabinet Sockets, Panel Board Applications, Machine Control Panels, Equipment Panel Entry, Control Cabinet Mounting, Distribution Panel Sockets, Machinery Panel Connections, Automation Panel Mount, Processing Equipment Panels, CNC Control Panels, Conveyor Control Cabinets, Motor Control Panel Sockets

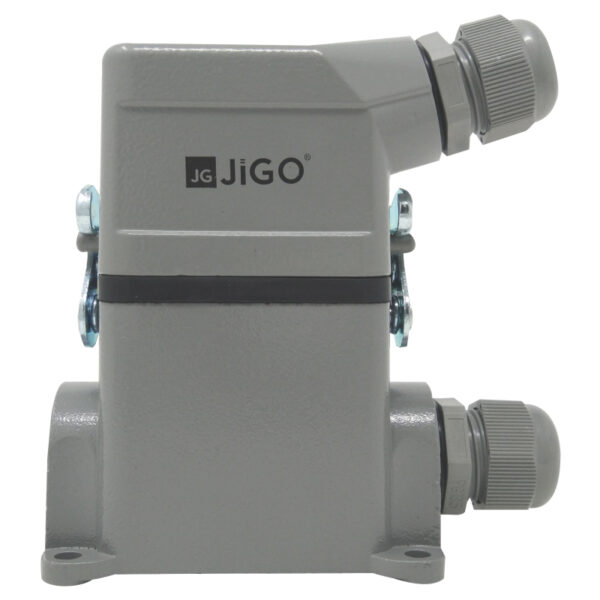

JIGO HE024-04 Heavy Duty Connector 24 PIN – 20 Insertions Top Entry Socket Bottom Wall | Industrial Rectangular Panel Mount Socket Connector | IP65 Waterproof Panel Mounting Design | 16A 500V Multi-Pin Panel Socket | Silver-Plated Copper Socket Pins | Die-Cast Aluminum Panel Socket Shell | Top Entry Panel Screw Terminal 0.5-4mm² | Bottom Wall Mounting Configuration | Temperature Range -40°C to +125°C | Professional Panel Mount Grade | CE/RoHS Certified
Technical Specifications
| Specification | Details |
|---|---|
| Model | HE024-04 |
| Configuration | 24 PIN – 20 insertions |
| Type | Top entry socket bottom wall |
| Design | Panel mount socket |
| Current | 16A |
| Voltage | 500V |
| Pin | Copper silver-plated socket |
| Resistance | ≤1mΩ |
| Shell | Panel mount aluminum |
| Color | Grey |
| Connection | Top entry panel |
| Wire | 0.5-4mm² |
| Torque | 0.5NM |
| Strip | 7-9mm |
| IP | IP65 |
| Temp | -40 to 125°C |
| Flame | UL94 V0 |
| Seal | Panel nitrile |
| Lock | Panel buckle |
| Cycles | ≥500 |
| Cert | CE/RoHS |
