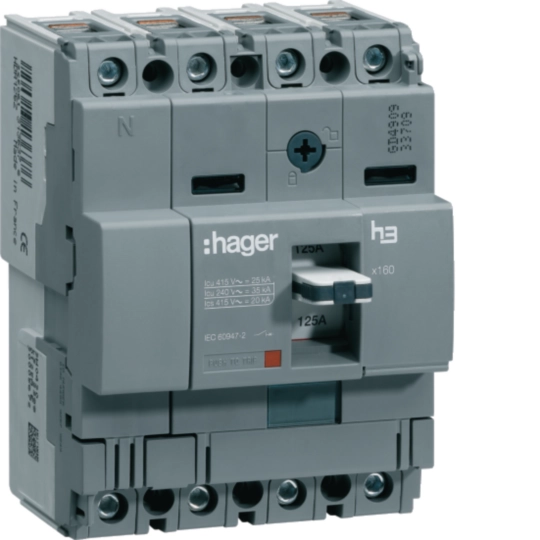

HHA126Z – MCCB X160 4P 125A 25kA
The Hager HHA126Z is an h3 X160 molded case circuit breaker rated at 125A in a 4-pole design, with a fixed thermal-magnetic trip unit for reliable protection of three-phase-plus-neutral circuits. It offers a breaking capacity (Icu) of 25kA at 415V AC (35kA at 240V), with rated insulation to 690V and 8kV impulse withstand. The fixed TM trip unit gives dependable protection, with a lockable cover to protect settings and a mechanical test button. Its compact X160 frame is DIN-rail mountable and includes integrated padlocking. Compliant with IEC 60947-2, it suits four-pole distribution protection. Ideal for four-wire feeder and submain protection in commercial and industrial distribution boards.
Buy the Hager HHA126Z from Aswan Electric today. Message us on WhatsApp or send an enquiry for competitive pricing across Dubai and the UAE.
| Key Specifications | Details |
|---|---|
| Series | X160 |
| Poles | 4P |
| Rating | 125A |
| Breaking Capacity | 25kA |
| Type | MCCB |
