LADN04

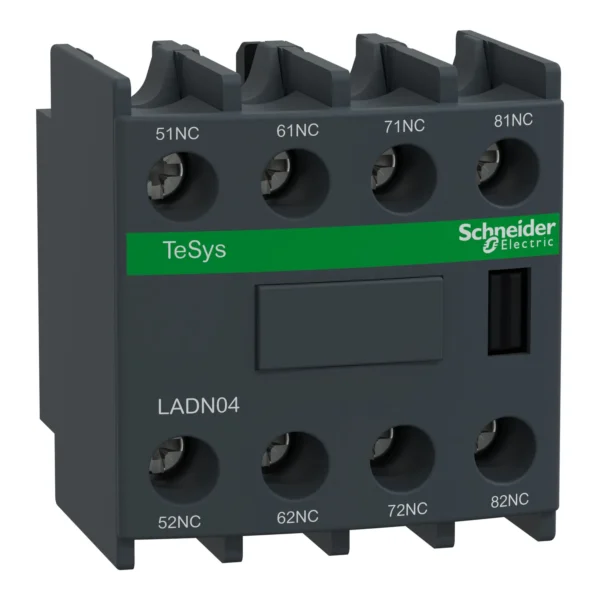

The Schneider LADN04 is a TeSys D auxiliary contact block with a 4NC (four normally closed) configuration, adding extra control contacts to your contactor setup. It snaps directly onto the front of the contactor for quick, tool-light installation and instant signalling. Rated at 10A, 690V AC with instantaneous operation, it is ideal for safety circuits, emergency stops, alarms, and interlocking. IP20 protection and screw clamp terminals make wiring safe and straightforward in control panels. It is compatible with LC1D09 to LC1D95 contactors and carries UL, CSA, and IEC certification. A dependable add-on for machine safety, fault detection, and critical control applications.
Add the Schneider LADN04 to your order at Aswan Electric. WhatsApp us or enquire online for pricing across Dubai and the UAE.
Schneider LADN04 Auxiliary Contact Block 4NC | TeSys D Front Mount Add-On | Four Normally Closed Contacts | Rated 10A 690V AC | Snap-On Quick Installation | IP20 Protection Rating | Screw Clamp Terminals | Compatible LC1D09-D95 Contactors | Instantaneous Operation | UL/CSA/IEC Certified
Technical Specifications
| Specification | Details |
|---|---|
| Config | 4NC |
| Rating | 10A 690V AC |
| Poles | 4 normally closed |
| Mount | Front snap-on |
| Protection | IP20 |
| Terminal | Screw clamp |
| Compatible | LC1D09-D95 |
| Operation | Instantaneous |
| Standards | UL/CSA/IEC |
| Type | Auxiliary block |
