LC1D25

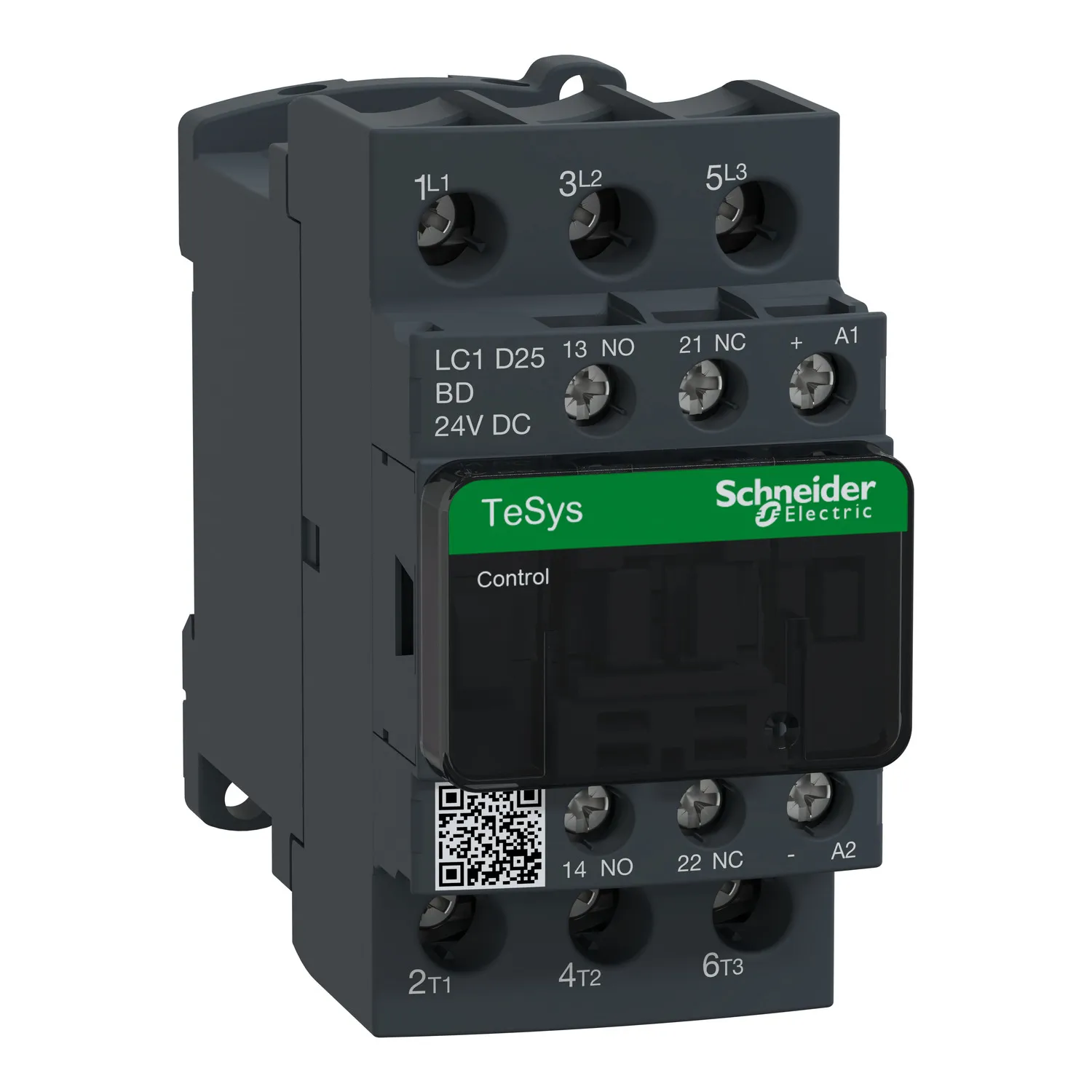

The Schneider Electric LC1D25 is a high-performance TeSys D magnetic contactor rated at 25A (AC-3), built for reliable three-phase control of motors up to 15HP at 480V. Its compact 45mm frame saves panel space while delivering a robust 100kA SCCR and insulation rated to 690V. Built-in surge suppression and Type 2 coordination compatibility make it a safe, dependable choice for demanding installations. It accepts multiple control-circuit options and snap-on auxiliary blocks for flexible builds. A wide frequency range from DC to 400Hz broadens its application scope across industrial systems. Ideal for chillers, refrigeration compressors, pumping stations, and food and beverage plants.
Order the Schneider LC1D25 from Aswan Electric now. WhatsApp us or enquire online for the best pricing across Sharjah and the UAE.
LC1D25 Schneider Electric Magnetic Contactor 25A – High Performance TeSys D | Compact 45mm Footprint Space Saving Design | Built-in Surge Suppression | Multiple Control Circuit Options | Add-On Auxiliary Blocks Available | Type 2 Coordination Compatible | Long Service Life Industrial Grade
Technical Specifications
| Specification | Details |
|---|---|
| Rating | 25A AC-3 |
| Poles | 3P |
| Voltage | Up to 690V |
| Power | 10HP @230V, 15HP @480V, 20HP @600V |
| Frame | 45mm |
| Insulation | 690V |
| SCCR | 100kA |
| Type 2 | Compatible |
| Add-ons | Multiple |
| Frequency | DC to 400Hz |
