MESC-compliant CU/XLPE/SWA/PVC armoured power cable to BS 5467, rated 600/1000V, available in 2–4 core sizes from 16–35mm² with circular stranded copper conductors. Features 90°C XLPE insulation for higher current capacity, galvanized steel wire armour for mechanical protection, and an FR PVC outer sheath for flame-retardant performance. Rated for 5°C to 90°C operation with a 250°C short-circuit rating, suitable for direct burial, ducts, trays, and conduits. LPCB-approved options available. Ideal for power distribution, switching stations, industrial plants, and commercial buildings. UAE-based supplier.

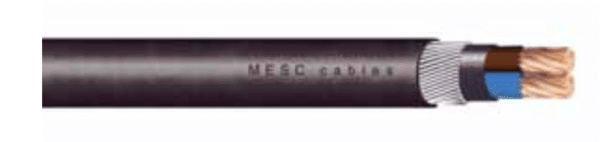

Power Multi Core Armoured Cable CU/XLPE/SWA/PVC – Circular Conductors – BS 5467
MESC Power Multi Core Armoured Cable (CU/XLPE/SWA/PVC, BS 5467) with circular stranded compact conductors is suitable for indoor and outdoor use in cable ducts, trays, conduits or underground under mechanical stresses. Applications include power and switching stations, local distribution systems, industrial plants and commercial buildings. XLPE insulation Type GP8 per BS 7655 1.2. Single layer galvanized SWA over PVC bedding. FR PVC Type 9 outer sheath per BS 7655 4.2. Available in 2, 3 and 4 core with circular stranded compact conductors. Also available with IEC 60332-3 CAT C, UV/sunlight resistance and oil resistance outer sheath on request.
| Specification | Details |
|---|---|
| Conductor | Circular Stranded Compact Annealed Plain Copper Class 2 per IEC 60228 |
| Insulation | XLPE Type GP8 per BS 7655 1.2 |
| Inner Sheath/Bedding | FR PVC Black |
| Armour | Single layer galvanized SWA |
| Outer Sheath | FR PVC Type 9 per BS 7655 4.2 – Black |
| Cores | 2, 3, 4 |
| Sizes | 16, 25, 35mm² |
| Overall Dia | 19.8mm (2C/16mm²) to 26.4mm (2C/35mm²) |
| Voltage | 600/1000 V |
| Temp range | -5°C to 90°C |
| Min Bending Radius | 8x OD |
| Voltage Withstand | 3500 V AC (5 min) |
| Max SC Temp | 250°C (5 sec) |
| Flame Retardant | IEC 60332-1 |
| Available Sizes / Core Configurations | 2 core: 16, 25, 35mm² 3 core: 16mm² 4 core: 16mm² |
| Conductor Type | Circular Stranded Compact Annealed Plain Copper – Class 2 per IEC 60228 |
| Insulation | XLPE Type GP8 per BS 7655 1.2 – 90°C |
| Sheath / Outer Jacket | FR PVC bedding (Black) + SWA + FR PVC Type 9 outer sheath (Black) per BS 7655 4.2 |
| Voltage Rating | 600/1000 V |
| Standard / Compliance | BS 5467, BS 7655, IEC 60332-1; optional IEC 60332-3 CAT C |
| Color Code | 2C: Brown/Blue 3C: Brown/Black/Grey 4C: Blue/Brown/Black/Grey |
| Standard Packing | Drum; standard lengths |
| Typical Applications | Power distribution, switching stations, industrial plants, commercial buildings, underground and mechanical-stress environments |
