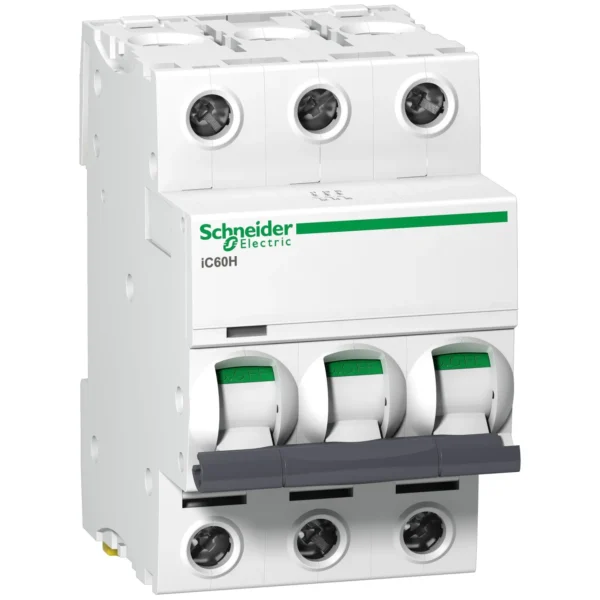

Schneider Electric A9F54363 Acti9 iC60 MCB
The Schneider Electric A9F54363 is a 3-pole miniature circuit breaker from the Acti9 iC60 series, rated for 63A with a Type C tripping curve and 10kA breaking capacity. Its DIN rail mounted, modular design with dual top/bottom terminals suits distribution boards across residential, commercial, and industrial installations. Built to BS EN 60898-1 and IEC 60947-2 standards with an operating range of -25°C to +70°C and 20,000+ mechanical operations, it delivers reliable circuit protection for lighting, power, and general-purpose applications.
Get the Schneider A9F54363 MCB from Schneider at Aswan Electric reach out on WhatsApp or contact us for pricing and availability across the UAE.
Schneider Electric A9F54363 Acti9 OTHER | 3 Poles 63A Rated Current | Type C Curve | 10kA / 10000A Breaking Capacity | Acti9 Series Professional Grade MCB | Advanced Circuit Protection | Industrial Commercial Buildings | DIN Rail Mount Modular Design | BS EN 60898-1 IEC 60947-2 Standards | High Performance Reliability | Comb Busbar Compatible | Tool-Free Installation | Premium Build Quality | Energy Efficient System | Easy Upgrade Replace | Smart Grid Ready | Space Optimization | Professional Installation
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | A9F54363 |
| Brand | Schneider Electric |
| Series | Acti9 |
| Product Type | OTHER |
| Poles | 3 Poles (3P) |
| Rated Current In | 63A |
| Tripping Curve | Type C Curve |
| Breaking Capacity Icn/Icu | 10kA / 10000A |
| Standards | BS EN 60898-1, IEC 60947-2, Marine certifications |
| Mounting | DIN rail 35mm |
| Pitch | 9mm (1 module per pole) |
| Protection | IP20, IP40 optional |
| Terminal | Dual connection top/bottom |
| Operating Temp | -25°C to +70°C |
| Mechanical Life | 20,000+ operations |
| Comb busbar compatible | |
| Trip indication window |
