PVC Insulated PVC Sheathed Flat Twin and Three Core Cable 300/500V
The MESC PVC Insulated PVC Sheathed Flat Twin and Three Core Cable is built for fixed installations in dry and damp locations, ideal for residential and commercial wiring in walls, on boards, or embedded in plaster. Available in 2-core and 3-core builds from 1.0mm² up to 16mm², with solid (Class 1) or stranded (Class 2) plain annealed copper conductors. Robust PVC insulation and a durable grey PVC sheath protect the cores across –25°C to 70°C, with both in-ground and in-air current ratings. Built to BS EN and IEC 60228 standards for safe, long-lasting fixed wiring.

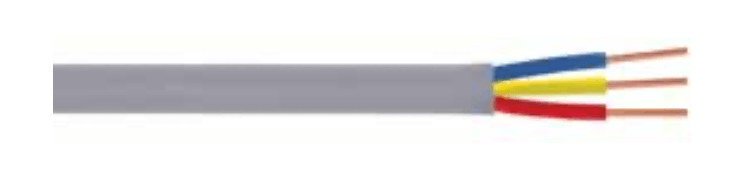

MESC PVC Insulated PVC Sheathed Flat Twin and Three Core Cable is designed for dry or damp locations for fixed installation, suitable for installation in walls, on boards or embedded in plaster. Available in 2-core (Red & Black) and 3-core (Red, Yellow, Blue) configurations with conductor sizes from 1.0mm² to 16mm². Solid (Class 1) and stranded (Class 2) conductors available. Grey PVC outer sheath. Temperature range -25°C to 70°C. Provides both current-carrying capacity in-ground and in-air ratings.
| Specification | Details |
|---|---|
| Conductor | Plain Annealed Copper Class 1 or Class 2 per IEC 60228 |
| Cores | 2 or 3 |
| Sizes | 1.0, 1.5, 2.5, 4, 6, 10, 16 mm² |
| Insulation | 0.6–1.0mm |
| Sheath | 0.9–1.3mm |
| Overall Dia (LxW) range | 6.8×4.4mm (2C/1mm²) to 24.5×10.1mm (3C/16mm²) |
| Conductor Resistance at 20°C | 18.1 Ω/km (1mm²) to 1.15 Ω/km (16mm²) |
| Current Capacity (20°C in-ground) | 32A (1.5mm²) to 116A (2C/16mm²) |
| Current Capacity (30°C in-air) | 20A (1.5mm²) to 89A (2C/16mm²) |
| Voltage | 300/500 V |
| Temperature | -25°C to 70°C |
| Available Sizes / Core Configurations | 2 core: 1.0, 1.5, 2.5, 4, 6mm² (Class 1) + 1.5, 2.5, 4, 6, 10, 16mm² (Class 2) 3 core: 1.0, 1.5, 2.5, 4, 6, 10, 16mm² |
| Conductor Type | Plain Annealed Copper – Class 1 (solid) or Class 2 (stranded) per IEC 60228 |
| Insulation | PVC Type TI-1 per BS EN 50363-3 |
| Sheath / Outer Jacket | PVC Type TM-1 per BS EN 50363-4.1 – Grey standard |
| Voltage Rating | 300/500 V |
| Standard / Compliance | BS EN50252-2-31, IEC 60228 |
| Color Code | 2 core: Red & Black 3 core: Red, Yellow (centre), Blue Sheath: Grey |
| Standard Packing | Coil / Reel / Drum in Metres, Yards or Feet |
| Typical Applications | Fixed installation in walls, embedded in plaster, dry/damp residential and commercial buildings, general fixed wiring on boards |
