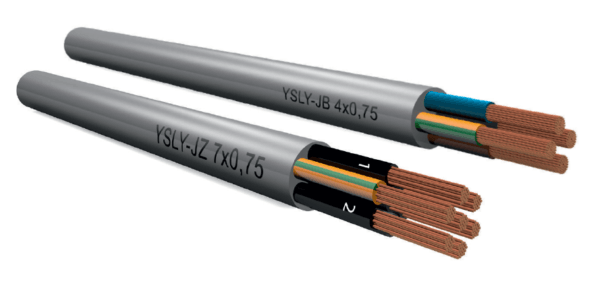

YSLY-JZ Control Cable 2.50mm²
Industrial Electrical Applications, Control Systems, Measurement Equipment, Machine Tool Industries, CNC Machines, Conveyor Belt Systems, Production Lines, Progressive Assembly Lines, Automatic Handling Apparatus, Medium Mechanical Stress Applications, Fixed Installation, Dry Room Applications, Humid Room Applications, Manufacturing Facilities, Factory Automation, Process Control, Industrial Control Panels, Motor Control, Instrumentation Wiring, Building Automation, HVAC Control Systems
SANKA YSLY-JZ PVC Control Cable 2.50mm² | Industrial Control Measurement Cable | Bare Copper Strands IEC 60228 Class 5 Flexible Conductor | PVC Insulation T12 EN 50363-3 | Black Cores White Numerals Yellow/Green Earth Core | PVC Outer Sheath TM2 EN 50363-4-1 RAL 7001 Grey | Voltage Rating 300/500V Test Voltage 2500V | TSE K 373 Standard Compliant | Machines Conveyor Belts Production Lines Machine Tool Industries | Progressive Assembly Lines Automatic Handling Apparatus | Medium Mechanical Stress Fixed Installation | Dry Humid Rooms Industrial Applications | Operating Temperature -30°C to +70°C Fixed -5°C to +70°C Moved | Flame Retardant IEC 60332-1 | Min Bending Radius Fixed 7.5×D Moved 15×D | Control Instrumentation Automation Wiring
Technical Specifications & Available Sizes
| Specification | Value |
|---|---|
| Product | YSLY-JZ Control Cable |
| Brand | SANKA CABLE (50 Years Since 1970) |
| Cross Section | 2.50mm² |
| Conductor | Bare Copper Strands IEC 60228 Class 5 |
| Insulation | PVC (T12 EN 50363-3) |
| Core Identification | Black cores with white numerals, Yellow/Green earth core starting from 3rd core |
| Outer Sheath | PVC (TM2 EN 50363-4-1), RAL 7001 Grey |
| Standard | TSE K 373 |
| Voltage Rating | 300/500V |
| Testing Voltage | 2500V |
| Conductor Resistance | max. 7.98 Ω/km |
| Insulation Resistance | min. 20 MΩ×km |
| Operating Temperature Fixed | -30°C to +70°C |
| Operating Temperature Moved | -5°C to +70°C |
| Flame Retardance | IEC 60332-1 |
| Min Bending Radius Fixed | 7.5×D |
| Min Bending Radius Moved | 15×D |
| Available configurations | 2×2.5, 3G2.5, 4G2.5, 5G2.5, 6G2.5, 7G2.5, 8G2.5, 9G2.5, 10G2.5, 12G2.5, 14G2.5, 16G2.5, 18G2.5, 19G2.5, 21G2.5, 24G2.5 |
