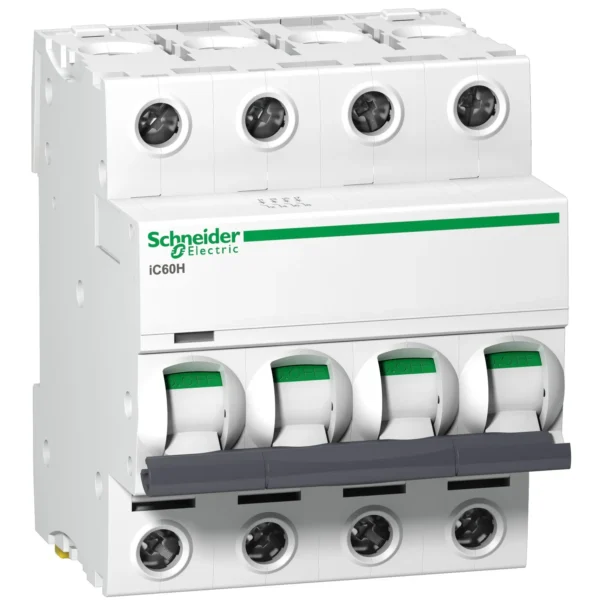

Schneider Electric A9F54425 Acti9 iC60 MCB
The Schneider Electric A9F54425 is a 4-pole miniature circuit breaker from the Acti9 iC60 series, rated for 25A with a Type C tripping curve and 10kA breaking capacity. Its DIN rail mounted, modular design with dual top/bottom terminals covers 3-phase plus neutral circuits, suiting distribution boards across residential, commercial, and industrial installations. Built to BS EN 60898-1 and IEC 60947-2 standards with an operating range of -25°C to +70°C and 20,000+ mechanical operations, it delivers reliable circuit protection for lighting, power, and general-purpose applications.
Schneider Electric A9F54425 Acti9 OTHER | 4 Poles 25A Rated Current | Type C Curve | 10kA / 10000A Breaking Capacity | Acti9 Series Professional Grade MCB | Advanced Circuit Protection | Industrial Commercial Buildings | DIN Rail Mount Modular Design | BS EN 60898-1 IEC 60947-2 Standards | High Performance Reliability | Comb Busbar Compatible | Tool-Free Installation | Premium Build Quality | Energy Efficient System | Easy Upgrade Replace | Smart Grid Ready | Space Optimization | Professional Installation
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | A9F54425 |
| Brand | Schneider Electric |
| Series | Acti9 |
| Product Type | OTHER |
| Poles | 4 Poles (4P) |
| Rated Current In | 25A |
| Tripping Curve | Type C Curve |
| Breaking Capacity Icn/Icu | 10kA / 10000A |
| Standards | BS EN 60898-1, IEC 60947-2, Marine certifications |
| Mounting | DIN rail 35mm |
| Pitch | 9mm (1 module per pole) |
| Protection | IP20, IP40 optional |
| Terminal | Dual connection top/bottom |
| Operating Temp | -25°C to +70°C |
| Mechanical Life | 20,000+ operations |
| Comb busbar compatible | |
| Trip indication window |
