EZC100H1020

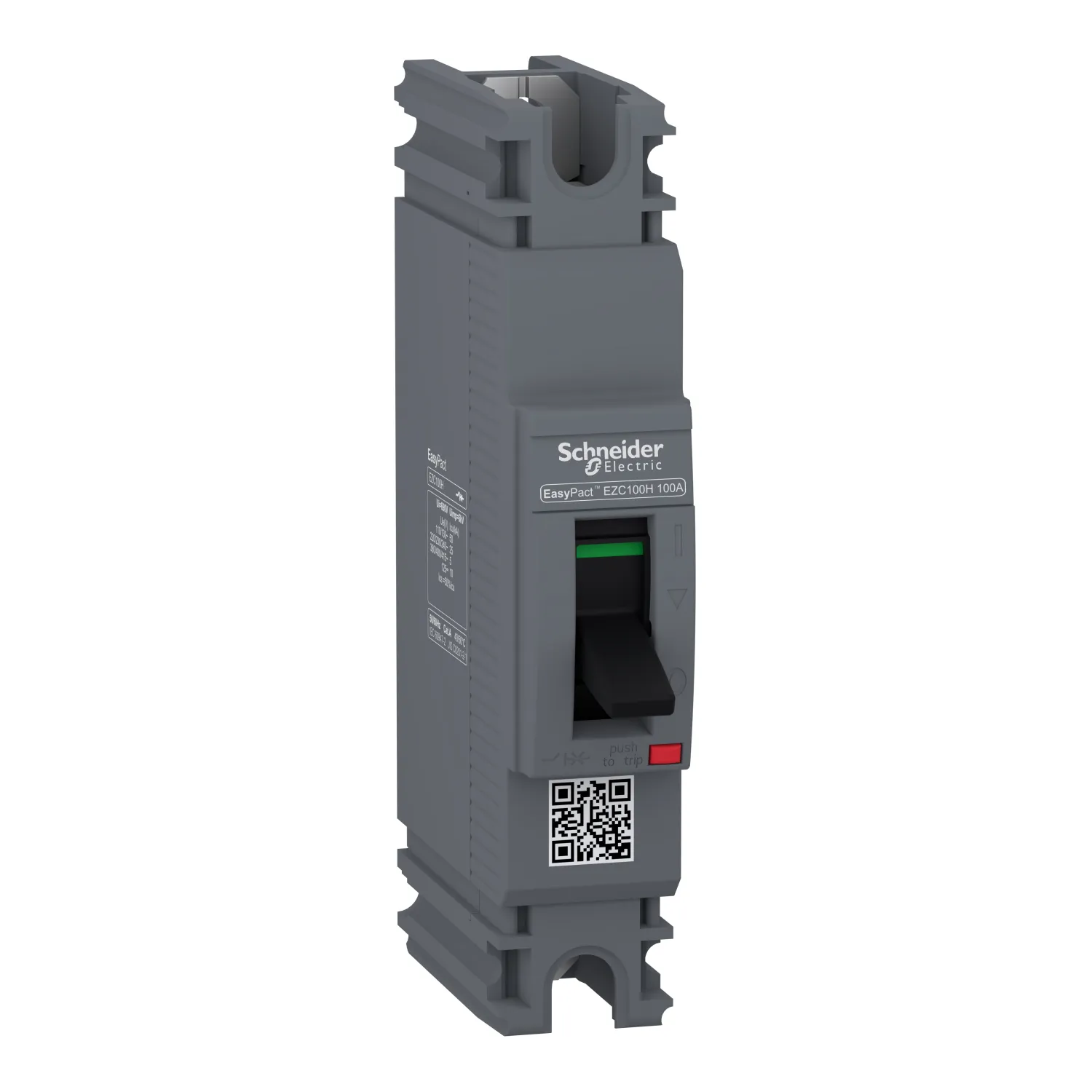

The Schneider Electric EZC100H1020 is an EasyPact EZC100H molded case circuit breaker rated at 20A in a single-pole design, with a TMD thermal-magnetic trip unit for overload and short-circuit protection. It delivers a breaking capacity (Icu) of 30kA at 415V AC with dependable, cost-effective performance. The TMD trip unit provides fixed overload and instantaneous protection, with operation up to 550V AC or 250V DC. Its compact 75x130x60mm frame suits tight panels, with positive contact indication. Compliant with IEC 60947 and UL 508 plus marine certifications, it fits a wide range of applications. Ideal for circuit protection in industrial plants, commercial buildings, and OEM equipment.
Buy the Schneider EZC100H1020 from Aswan Electric today. Message us on WhatsApp or send an enquiry for competitive UAE pricing.
Schneider Electric EZC100H1020 Molded Case Circuit Breaker | 1 Pole 20A Rated Current | 25kA Breaking Capacity | EasyPact Series MCCB | Thermal Magnetic Trip Unit TMD | Fixed Settings Protection | DIN Rail Panel Mount | IP40 IP54 Protection | IEC 60947-1 IEC 60947-2 Standards | Industrial Commercial Buildings | Power Distribution Motor Control | Overload Short Circuit Protection | Cost-Effective Reliable Performance | Compact Design Space-Saving | Complete Range Auxiliaries Available
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | EZC100H1020 |
| Brand | Schneider Electric |
| Series | EasyPact EZC100H |
| Poles | 1 Pole |
| Rated Current In | 20A |
| Breaking Capacity Icu | 25kA at 415V AC |
| Trip Unit | TMD (Thermal-Magnetic with fixed settings) |
| Standards | IEC 60947-1, IEC 60947-2 |
| Voltage | Up to 690V AC |
| Protection | IP40 standard, IP54 optional |
| Mounting | DIN rail, Panel |
| Features | Compact design, Cost-effective, Reliable protection, Complete accessories range |
| Applications | Small to medium buildings, Standard industrial |
