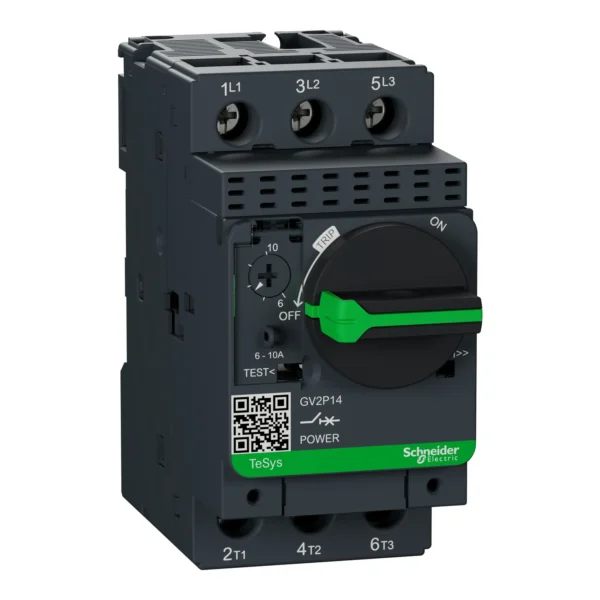

GV2P14
The Schneider Electric GV2P14 is a TeSys GV2 motor protection circuit breaker adjustable across 6 to 10A for motor applications in the 4 to 5.5kW class. Built with thermal-magnetic trip technology, it protects against overloads and short circuits while allowing manual on-off control. The rotary handle provides an at-a-glance visible trip indicator, and the current dial tunes the trip point to the motor. A high 100kA SCCR breaking capacity and IP20 finger-safe terminals make it safe and easy to work with in tight panels. It mounts on DIN rail or panel and meets UL508, CSA, and IEC requirements with Green Premium RoHS status. Well suited to HVAC, conveyor drives, processing equipment, and industrial motor control.
Get the Schneider GV2P14 from Aswan Electric. Contact us on WhatsApp or enquire online for quick delivery across Dubai and the UAE.
Schneider Electric GV2P14 Motor Protection Switch 6-10A | TeSys GV2P High Performance Starter | Thermal-Magnetic Trip Technology | Rotary Handle Visible Trip Indicator | Adjustable Current Setting Dial | High Breaking Capacity 100kA SCCR | IP20 Finger-Safe Terminals | DIN Rail Panel Mount Options | UL508 CSA IEC Certified | Green Premium RoHS
Technical Specifications
| Specification | Details |
|---|---|
| Range | 6-10A |
| Type | Motor protection switch |
| Trip | Thermal-magnetic |
| Handle | Rotary visible trip |
| Adjustable | Current dial |
| Breaking | 100kA SCCR |
| Protection | IP20 finger-safe |
| Mount | DIN/Panel options |
| Standards | UL508/CSA/IEC |
| Green | RoHS premium |
| Voltage | 690V |
