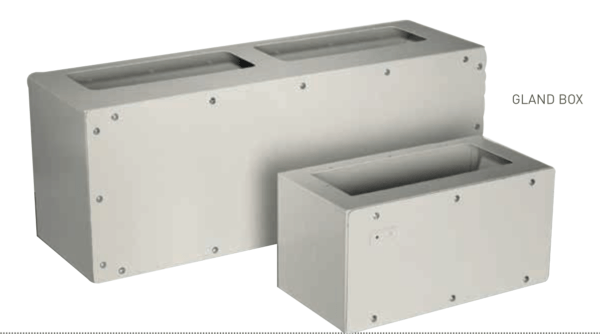

The RR Switchgear Gland Box is a purpose-built steel cable entry enclosure designed to be mounted at the base of the RR Weatherproof Metal Enclosure (WPEN Series) to provide a secure, organised cable gland entry point for incoming and outgoing cables. Supplied complete with a gland plate featuring pre-punched or knockoutted areas for cable gland installation, the Gland Box protects cable entries from the environment while maintaining the IP66 integrity of the overall enclosure assembly. Constructed to match the quality and finish of the WPEN enclosure range, it is an essential accessory for outdoor and weatherproof panel installations where neat, protected cable management is required. Available in two sizes to suit different panel and cable configurations.
Technical Specifications & Size Variations
| Specification |
Details |
| Compatibility |
Designed for use with RR Weatherproof Metal Enclosures (WPEN Series) |
| Supplied with |
Gland Plate |
| Material |
Steel (matching WPEN enclosure construction) |
| Note |
All sizes listed as H × W × D (mm) |
| Cat. No. |
Size H × W × D (mm) |
| RR-GB6252 |
600 × 250 × 200 |
| RR-GB8325 |
800 × 300 × 250 |
